PUMPS FOR LPG, petroleum products, LNG & cryogenic APPLICATIONS
FAS NZ SERIES – SIDE CHANNEL / CENTRIFUGAL PUMPS
Applications: Filling stations, cylinder filling stations, terminals (tank farms), road tankers
BLACKMER SLIDING VANE PUMPS
CORKEN SLIDING VANE & TURBINE PUMPS
EBSRAY REGENERATIVE TURBINE & SUBMERSIBLE MOTOR PUMPS
Applications: Filling stations, road tankers
SIHI SIDE CHANNEL PUMPS
GILBARCO SUBMERSIBLE PUMPS
GVR
GILBARCO submersible motor pump PN 25, for medium propane / butane, type GVR - Premier, for pumping liquefied gas from underground and above-ground tanks, compact unit consisting of a multi-stage centrifugal pump and an explosion-proof three-phase motor with 2 integrated overload protection devices and automatic reset.
- Ambient temperature: -20 ° C to + 40 ° C
- minimum differential pressure: 4.0 bar
- Operating voltage: 380-415 V / 50 Hz
- Explosion protection marking: Ex Il 2G Exb cd lla T4 Gb
- Connection for the pressure line connection system: 2 "NPT FM
| TYPE | Stages | max. differential pressure [bar] | l/min @ 7,0bar differential pressure | Motor [kW] | Weight [kg] |
|---|---|---|---|---|---|
| Premier / P300V17-21 | 21 | 9,2 | 66 | 2,2 | 39 |
| MidFlow / P300V17-17 | 17 | 8,8 | 95 | 2,2 | 39 |
| HiFlow / P500V17-24 | 24 | 11,4 | 152 | 3,7 | 48 |
FAS Production with GILBARCO submersible pumps

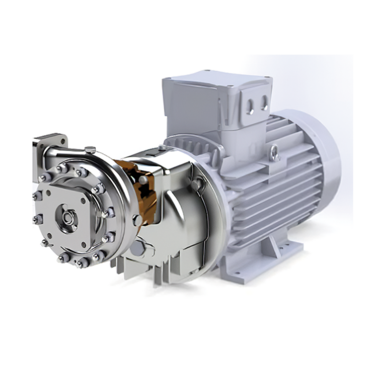

VANZETTI LNG & CRYOGENIC PUMPS
Applications: Filling stations, terminal (tank farms), road tankers
- VANZETTI SGM 185
- VANZETTI DSM 230
For more information please click here FAS catalogue
