CORKEN
Oil-free dry running piston compressor Type CORKEN 91
Application: LPG loading & unloading
road tankers, terminals, rail tank cars, tank ships
Compressor CORKEN Type 91
- Housing material ASTM A 536
- Inlet-Outlet: ¾ “NPT IG
- Number of cylinders: 1
- Stroke volume flow: 13.5 m3 / h
- MIN inlet pressure: 0.21 bar
- MAX outlet pressure: 23.1 bar
- Weight: 68 kg

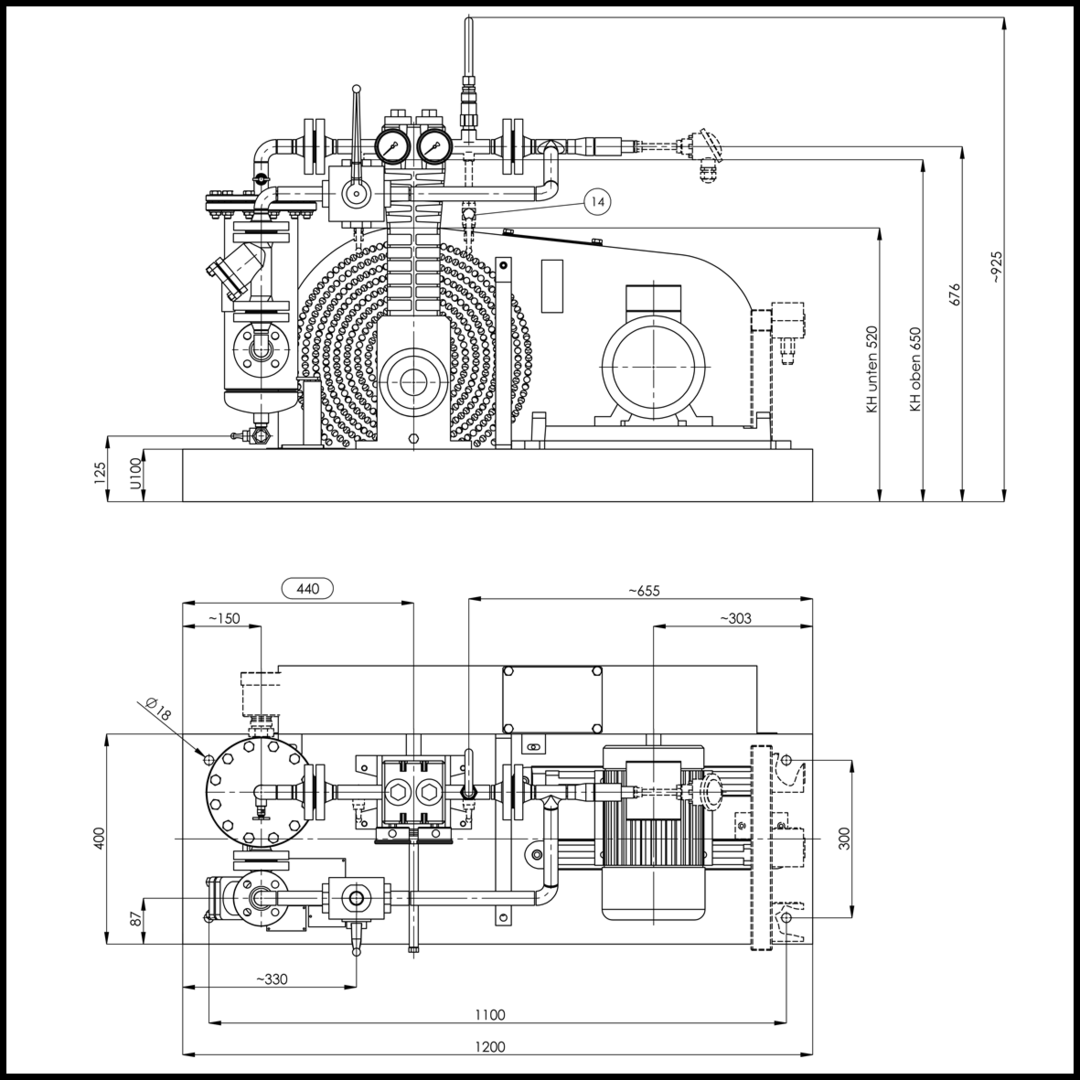

Compressor unit Type FAS / CORKEN 91
Completely built on a base plate. Consisting of:
- Compressor: CORKEN 91
- Liquid trap, filter, manometer, 4-way ball valve
- Motor including V-belt and belt guard
- Ex 400/690 V, 50Hz, IP 54.
- Motor power 3.6 KW
- MIN; MAX pressure monitoring - Oil pressure monitoring
- Weight: 220 kg
- Dimensions: 1200x530x940
